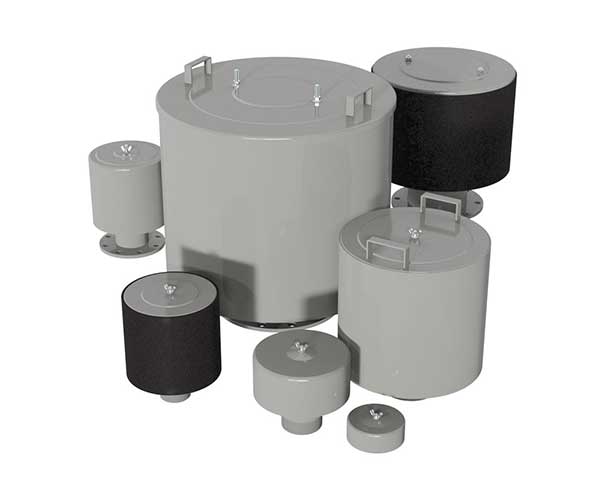

F-FT-Studio

F/FT系列

品牌：美國 Solberg
【F系列】
*全拉式擋風玻璃（1/2-6“連接）
*底座和蓋之間的進氣速度低
【FT系列】
*外露元件可實現最佳氣流和低限制
*可根據要求提供壓降圖
—
*帶有低壓降出口管和中心支架設計的重型壓力表底座
*耐腐蝕灰色粉末塗層碳鋼
*溫度（連續）：最低-15°F（-26°C）最高220°F（104°C）
*過濾器更換差：在初始ΔP上為15-20英寸H 2 O（37-50 mbar）
*聚酯：99％+去除效率標準至5微米
*紙：99％+去除效率標準至2微米
立即詢價

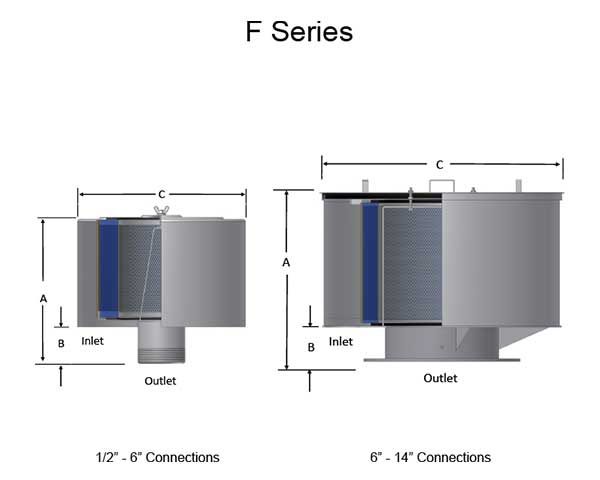

F系列：
這款堅固的進氣過濾器組件可保護壓縮機，鼓風機或風扇免受大氣污垢和碎屑的侵害。它標配有全天候通風罩，以保護組件。

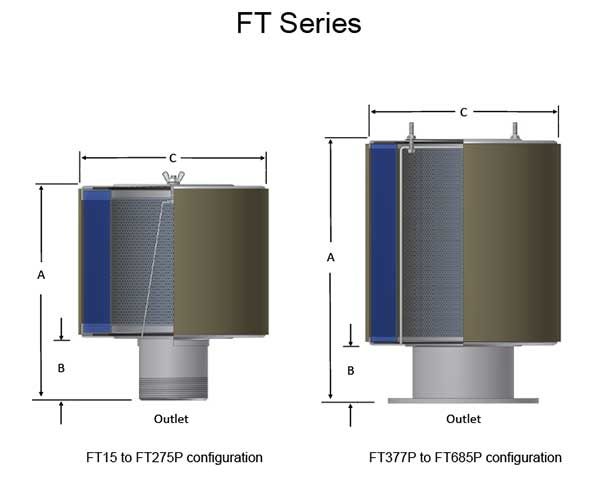

FT系列：
這種開放式（裸露）濾芯組件是節省空間的選件，可用於佔地空間有限的工作區域。

Model
Number		Outlet connection size(IN.)Connection typeFlow(M3/HR)MediaMicron ratingReplacement element
F-14-050.5MPT17Paper214
FT-14-050.5MPT17Paper214
F-14-075.75MPT43Paper214
F-14P-075.75MPT43Paper214P
FT-14-075.75MPT26Paper214
F-14-1001MPT60Paper214
F-18P-1001MPT94Paper218P
FT-14-1001MPT51Paper214
FT-18-1001MPT60Paper218
FT-18P-1001MPT60Paper218P
F-18P-1261.25BSPT119Paper218P
FT-18P-1261.25BSPT119Paper218P
F-18P-1511.5BSPT145Paper218P
FT-18P-1511.5BSPT145Paper218P
F-230P-2012BSPT230Paper2230P
F-30P-2012BSPT230Paper230P
FT-230P-2012BSPT230Paper2230P
FT-30P-2012BSPT230Paper230P
F-230P-2512.5BSPT332Paper2230P
F-30-2512.5BSPT170Paper230
FT-230P-2512.5BSPT332Paper2230P
FT-30P-2512.5BSPT332Paper230P
F-234P-3013BSPT510Paper2234P
F-244P-3013BSPT510Paper2244P
F-274P-3013BSPT510Paper2274P
FT-230P-3013BSPT510Paper2230P
FT-234P-3013BSPT510Paper2234P
FT-244P-3013BSPT510Paper2244P
FT-274P-3013BSPT510Paper2274P
F-234P-4014BSPT883Paper2234P
F-244P-4014BSPT883Paper2244P
F-274P-4014BSPT883Paper2274P
FT-234P-4014BSPT883Paper2234P
FT-244P-4014BSPT883Paper2244P
FT-274P-4014BSPT883Paper2274P
F-244P-5015BSPT1359Paper2244P
F-274P-5015BSPT1359Paper2274P
FT-244P-5015BSPT1359Paper2244P
FT-274P-5015BSPT1359Paper2274P
F-274P-6016BSPT1868Paper2274P
FT-274P-6016BSPT1868Paper2274P
F-234P-DN100DN100BSPT883Paper2234P
F-244P-DN100DN100PN10 FLG Pattern883Paper2244P
F-274P-DN100DN100PN10 FLG Pattern883Paper2274P
FT-234P-DN100DN100PN10 FLG Pattern883Paper2234P
FT-244P-DN100DN100PN10 FLG Pattern883Paper2244P
FT-274P-DN100DN100PN10 FLG Pattern883Paper2274P
F-244P-DN125DN125PN10 FLG Pattern1359Paper2244P
F-274P-DN125DN125PN10 FLG Pattern1359Paper2274P
FT-244P-DN125DN125PN10 FLG Pattern1359Paper2244P
FT-274P-DN125DN125PN10 FLG Pattern1359Paper2274P
F-274P-DN150DN150PN10 FLG Pattern1868Paper2274P
F-376P-DN150DN150PN10 FLG Pattern1868Paper2376P
FT-274P-DN150DN150PN10 FLG Pattern1868Paper2274P
FT-376P-DN150DN150PN10 FLG Pattern1868Paper2376P
F-376P-DN200DN200PN10 FLG Pattern3057Paper2376P
F-384P-DN200DN200PN10 FLG Pattern3057Paper2384P
F-484P-DN200DN200PN10 FLG Pattern3057Paper2484P
FT-376P-DN200DN200PN10 FLG Pattern3057Paper2376P
FT-384P-DN200DN200PN10 FLG Pattern3057Paper2384P
FT-484P-DN200DN200PN10 FLG Pattern3057Paper2484P
F-384P(2)-DN250DN250PN10 FLG Pattern5603Paper2384P(2)
F-384P-DN250DN250PN10 FLG Pattern5603Paper2384P
F-484P-DN250DN250PN10 FLG Pattern5603Paper2484P
FT-384P(2)-DN250DN250PN10 FLG Pattern5603Paper2384P(2)
FT-384P-DN250DN250PN10 FLG Pattern5603Paper2384P
FT-484P-DN250DN250PN10 FLG Pattern5603Paper2484P
F-384P(2)-DN300DN300PN10 FLG Pattern7980Paper2384P(2)
F-384P-DN300DN300PN10 FLG Pattern5603Paper2384P
Model
Number		Outlet connection size(IN.)Connection typeFlow(M3/HR)MediaMicron ratingReplacement element
F-14-050.5MPT17Paper214
FT-14-050.5MPT17Paper214
F-14-075.75MPT43Paper214
F-14P-075.75MPT43Paper214P
FT-14-075.75MPT26Paper214
F-14-1001MPT60Paper214
F-18P-1001MPT94Paper218P
FT-14-1001MPT51Paper214
FT-18-1001MPT60Paper218
FT-18P-1001MPT60Paper218P
F-18P-1261.25BSPT119Paper218P
FT-18P-1261.25BSPT119Paper218P
F-18P-1511.5BSPT145Paper218P
FT-18P-1511.5BSPT145Paper218P
F-230P-2012BSPT230Paper2230P
F-30P-2012BSPT230Paper230P
FT-230P-2012BSPT230Paper2230P
FT-30P-2012BSPT230Paper230P
F-230P-2512.5BSPT332Paper2230P
F-30-2512.5BSPT170Paper230
FT-230P-2512.5BSPT332Paper2230P
FT-30P-2512.5BSPT332Paper230P
F-234P-3013BSPT510Paper2234P
F-244P-3013BSPT510Paper2244P
F-274P-3013BSPT510Paper2274P
FT-230P-3013BSPT510Paper2230P
FT-234P-3013BSPT510Paper2234P
FT-244P-3013BSPT510Paper2244P
FT-274P-3013BSPT510Paper2274P
F-234P-4014BSPT883Paper2234P
F-244P-4014BSPT883Paper2244P
F-274P-4014BSPT883Paper2274P
FT-234P-4014BSPT883Paper2234P
FT-244P-4014BSPT883Paper2244P
FT-274P-4014BSPT883Paper2274P
F-244P-5015BSPT1359Paper2244P
F-274P-5015BSPT1359Paper2274P
FT-244P-5015BSPT1359Paper2244P
FT-274P-5015BSPT1359Paper2274P
F-274P-6016BSPT1868Paper2274P
FT-274P-6016BSPT1868Paper2274P
F-234P-DN100DN100BSPT883Paper2234P
F-244P-DN100DN100PN10 FLG Pattern883Paper2244P
F-274P-DN100DN100PN10 FLG Pattern883Paper2274P
FT-234P-DN100DN100PN10 FLG Pattern883Paper2234P
FT-244P-DN100DN100PN10 FLG Pattern883Paper2244P
FT-274P-DN100DN100PN10 FLG Pattern883Paper2274P
F-244P-DN125DN125PN10 FLG Pattern1359Paper2244P
F-274P-DN125DN125PN10 FLG Pattern1359Paper2274P
FT-244P-DN125DN125PN10 FLG Pattern1359Paper2244P
FT-274P-DN125DN125PN10 FLG Pattern1359Paper2274P
F-274P-DN150DN150PN10 FLG Pattern1868Paper2274P
F-376P-DN150DN150PN10 FLG Pattern1868Paper2376P
FT-274P-DN150DN150PN10 FLG Pattern1868Paper2274P
FT-376P-DN150DN150PN10 FLG Pattern1868Paper2376P
F-376P-DN200DN200PN10 FLG Pattern3057Paper2376P
F-384P-DN200DN200PN10 FLG Pattern3057Paper2384P
F-484P-DN200DN200PN10 FLG Pattern3057Paper2484P
FT-376P-DN200DN200PN10 FLG Pattern3057Paper2376P
FT-384P-DN200DN200PN10 FLG Pattern3057Paper2384P
FT-484P-DN200DN200PN10 FLG Pattern3057Paper2484P
F-384P(2)-DN250DN250PN10 FLG Pattern5603Paper2384P(2)
F-384P-DN250DN250PN10 FLG Pattern5603Paper2384P
F-484P-DN250DN250PN10 FLG Pattern5603Paper2484P
FT-384P(2)-DN250DN250PN10 FLG Pattern5603Paper2384P(2)
FT-384P-DN250DN250PN10 FLG Pattern5603Paper2384P
FT-484P-DN250DN250PN10 FLG Pattern5603Paper2484P
F-384P(2)-DN300DN300PN10 FLG Pattern7980Paper2384P(2)
F-384P-DN300DN300PN10 FLG Pattern5603Paper2384P



相關配件

產品應用

灰處理
鼓風機側通道
壓縮機活塞
壓縮機螺絲
建築承包商行業
碼頭控制
信封製造
液壓呼吸器-精細過濾
氣動輸送系統
散佈
廢水曝氣
作坊
工業和重負荷
鼓風機-PD型

認證

ISO認證

檔案下載

♦ 維護手冊 | PDF下載
♦ F 型錄-英制 | PDF下載
♦ F 型錄-公制 | PDF下載
♦ FT 型錄-英制 | PDF下載
♦ FT 型錄-公制 | PDF下載
